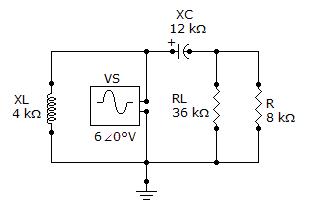

Referring to the given circuit, what is VTH if VS = 12V?
If two currents are in the same direction at any instant of time in a given branch of a circuit, the net current at that instant
In an ac circuit, power to the load peaks at the frequency at which the load impedance is the complex conjugate of the output impedance.
One circuit is equivalent to another, in the context of Thevenin's theorem, when the circuits produce the same voltage.
The Thevenin equivalent voltage is
In order to get maximum power transfer from a capacitive source, the load must have an impedance that is the complex conjugate of the source impedance.
Thevenin's theorem provides a method for the reduction of any ac circuit to an equivalent form consisting of an equivalent current source in parallel with an equivalent impedance.
For the given circuit, find VTH for the circuit external to RL.
Norton's theorem provides a method for the reduction of any ac circuit to an equivalent form consisting of an equivalent voltage source in series with an equivalent impedance.
The superposition theorem is useful for the analysis of single-source circuits.
Referring to the given circuit, find ZTH if R isk and RL isk.
A Thevenin ac equivalent circuit always consists of an equivalent ac voltage source and an equivalent capacitance.
In order to get maximum power transfer from a capacitive source, the load must
Like Thevenin's theorem, Norton's theorem provides a method of reducing a more complex circuit to a simpler, more manageable form for analysis.
For the circuit shown, determine ZTH for the portion of the circuit external to RL.
The superposition theorem is useful for circuit analysis only in ac circuits.
Referring to the given circuit, what is ZTH if R1 is changed to?
An equivalent circuit is one that produces the same voltage and current to a given load as the original circuit that it replaces.
