Q.1
Which of the following scales is used when there are three units that need to be measured?
  • a) Plain scale
  • b) Comparative scale
  • c) Diagonal scale
  • d) Vernier scale
Q.2
Which of the following scales is used to accurately measure minute divisions?
  • a) Plain scale
  • b) Diagonal scale
  • c) Scale of chords
  • d) Comparative scale
Q.3

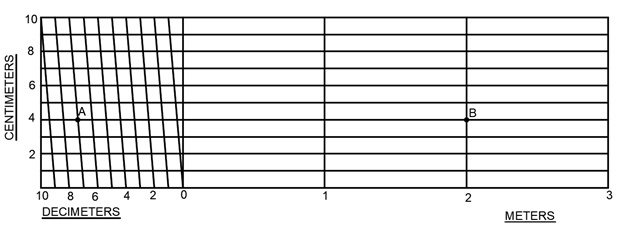

What is the length of AB in the following scale?
  • a) 2.74 m
  • b) 3.74 m
  • c) 2.47 m
  • d) 3.47 m
Q.4
What is the maximum length of the given scale?
  • a) 3 dm
  • b) 4 dm
  • c) 3 m
  • d) 4 m
Q.5
If the given scale iswhat is the length of the scale?
  • a) 6.67dm
  • b) 0.67 cm
  • c) 6.67 cm
  • d) 66.67 cm
Q.6
From the given scale, we can measure 4.m.
  • a) True
  • b) False
Q.7

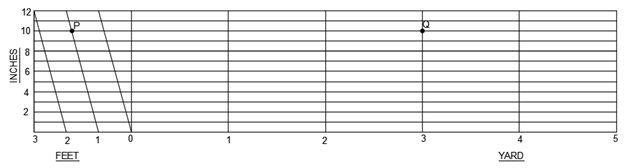

From the given scale below, what is the length of PQ?
  • a) 3 yd 2 ft 0”
  • b) 3 yd 1 ft 10”
  • c) 3 yd 0 ft 10”
  • d) 4 yd 2 ft 0”
Q.8
What is the maximum length that can be measured using the given scale?
  • a) 6 yards
  • b) 5 yards
  • c) 6 feet
  • d) 15 feet
Q.9
What is the length of the scale, if the scale is 1:30?
  • a) 0.6 yard
  • b) 7.2 feet
  • c) 0.2 feet
  • d) 7.2 inches
Q.10
From the given scale, we can measure 5 yards 3 feet and 0 inches.
  • a) True
  • b) False
