Q.1
Which of the following mathematical tool is used to synthesize the mechanism graphically?
  • a) Tangent
  • b) Perpendicular bisector
  • c) Chord
  • d) Arc of contact
Q.2
Graphical errors occur during the function generation solely due to choice of wrong scale.
  • a) True
  • b) False
Q.3
Which of the following given below is not a type of error which could be identified during function regeneration?
  • a) Structural
  • b) Mechanical
  • c) Graphical
  • d) Theoretical
Q.4
Which of the following is not classified under synthesis problem?
  • a) Body guidance
  • b) Function generation
  • c) Path generation
  • d) Graphical methodology
Q.5
Order defect can be defined as _________
  • a) Improper configuration of precision points
  • b) Non covering of all points by the mechanism
  • c) Too many configuration points
  • d) Too many coordinate systems
Q.6
For errors in function generation, which of the following statement is true?
  • a) Structural errors are 0 at precision points
  • b) Structural and mechanical errors are coexistent
  • c) Increase in precision points will increase structural error
  • d) Decrease in precision points will decrease structural error
Q.7

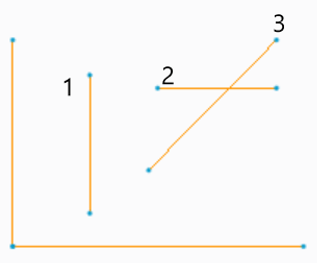

If the given axes are Y and X axis and the numbers represent the spatial points, then what will be the position of one of the pivots?
  • a) Below X axis
  • b) Above X axis
  • c) Left of Y axis
  • d) Between Y axis and 1
Q.8
Structural errors are 0 at precision points.
  • a) True
  • b) False
Q.9
Which of the following linkage is observed to have branch defect?
  • a) Grashof type 4 bar linkage
  • b) Klein constructions
  • c) Ritterhaus’ constructions
  • d) Non- Grashof type 4 bar linkage
Q.10
Which method is used in the synthesis of function generation?
  • a) Overlay method
  • b) Klein’s method
  • c) Chebychev’s inequality
  • d) Freudenstein’s equation
