Q.1
The balancing weights are introduced in planes parallel to the plane of rotation of the disturbing mass. To obtain complete dynamic balance, the minimum number of balancing weights to be introduced in different planes is
1
2
3
4
Q.2
The train value of a gear train is
Equal to velocity ratio of a gear train
Reciprocal of velocity ratio of a gear train
Always greater than unity
Always less than unity
Q.3
A slider moves at a velocity v on a link revolving at ω rad/s. The coriolis component of acceleration is
ωv
2ωv
ω²v
2ωv²
Q.4
The frictional torque transmitted in a truncated conical pivot bearing, considering uniform pressure, is
(1/2). μ W cosecα (r₁ + r₂)
(2/3). μ W cosecα (r₁ + r₂)
(1/2). μ W cosecα [(r₁³ - r₂³)/(r₁² - r₂²)]
(2/3). μ W cosecα [(r₁³ - r₂³)/(r₁² - r₂²)]
Q.5
In a Hartnell governor, the compression of the spring is __________ the lift of the sleeve.
Equal to
Less than
Greater than
None of these
Q.6
To connect two parallel and coplanar shafts the following type of gearing is used
Spur gear
Bevel gear
Spiral gear
None of the above
Q.7
The example of rolling pair is
Bolt and nut
Lead screw of a lathe
Ball and socket joint
Ball bearing and roller bearing
Q.8
The Coriolis component of acceleration exists whenever a point moves along a path that has
Linear displacement
Rotational motion
Gravitational acceleration
Tangential acceleration
Q.9
The absolute acceleration of any point ‘P’ in a link about center of rotation ‘O’ is
Along PO
Perpendicular to PO
At 45° to PO
None of the above
Q.10
In a simple train of wheels, the velocity ratio __________ the intermediate wheels.
Depends upon
Is independent of
Either A or B
None of these
Q.11
The power of a Porter governor is equal to
[3c²/(1 + 2c)] (m + M) g.h
[c²/(1 + 2c)] (m + M) g.h
[2c²/(1 + 2c)] (m + M) g.h
[4c²/(1 + 2c)] (m + M) g.h
Q.12
According to Kennedy's theorem, if three bodies move relatively to each other, their instantaneous centers will lie on a
Straight line
Parabolic curve
Triangle
Rectangle
Q.13
Which gear is used for connecting two coplanar and intersecting shafts?
Spur gear
Helical gear
Bevel gear
None of the above
Q.14
Idler pulley is used
For changing the direction of motion of the belt
For applying tension
For increasing velocity ratio
All of the above
Q.15

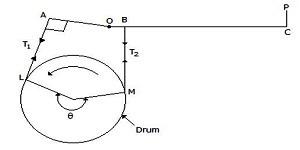

For the brake to be self locking, the force P at C shown in the below figure, should
Be zero
Act in upward direction
Act in downward direction
None of these
Q.16
Sense of tangential acceleration of a link
Is same as that of velocity
Is opposite to that of velocity
Could be either same or opposite to velocity
Is perpendicular to that of velocity
Q.17
When a point at the end of a link moves with constant angular velocity, its acceleration will have
Radial component only
Tangential component only
Coriolis component only
Radial and tangential components both
Q.18
When a point moves along a straight line, its acceleration will have
Radial component only
Tangential component only
Coriolis component only
Radial and tangential components both
Q.19
For a kinematic chain to be considered as mechanism
Two links should be fixed
One link should be fixed
None of the links should be fixed
There is no such criterion
Q.20
In a vibrating system, if the actual damping coefficient is 40 N/m/s and critical damping coefficient is 420 N/m/s, then logarithmic decrement is equal to
0.2
0.4
0.6
0.8
Q.21
In under damped vibrating system, if x₁ and x₂ are the successive values of the amplitude on the same side of the mean position, then the logarithmic decrement is equal to
x₁/x₂
log(x₁/x₂)
loge(x₁/x₂)
log(x₁.x₂)
Q.22
The two parallel and coplanar shafts are connected by gears having teeth parallel to the axis of the shaft. This arrangement is known as
Spur gearing
Helical gearing
Bevel gearing
Spiral gearing
Q.23
The type of pair formed by two elements which are so connected that one is constrained to turn or revolve about a fixed axis of another element is known as
Turning pair
Rolling pair
Sliding pair
Spherical pair
Q.24
The velocity of any point in mechanism relative to any other point on the mechanism on velocity polygon is represented by the line
Joining the corresponding points
Perpendicular to line as per (A)
Not possible to determine with these data
At 45° to line as per (A)
Q.25
The factor which affects the critical speed of a shaft is
Diameter of disc
Span of shaft
Eccentricity
All of these
Q.26
Klein's construction is useful to determine
Velocity of various parts
Acceleration of various parts
Displacement of various parts
Angular acceleration of various parts
Q.27
A rigid body possesses ________degrees of freedom
One
Two
Four
Six
Q.28
In higher pair, the relative motion is
Purely turning
Purely sliding
Purely rotary
Combination of sliding and turning
Q.29
A Hartnell governor is a
Dead weight governor
Pendulum type governor
Spring loaded governor
Inertia governor
Q.30
Which of the following property of the instantaneous center is correct?
A rigid link rotates instantaneously relative to another link at the instantaneous centre for the configuration of the mechanism considered.
The two rigid links have no linear velocity relative to each other at the instantaneous centre.
The velocity of the instantaneous centre relative to any third rigid link is same whether the instantaneous centre is regarded as a point on the first rigid link or on the second rigid link.
All of the above
Q.31
The periodic time of a compound pendulum is __________ when the distance between the point of suspension and the center of gravity is equal to the radius of gyration of the body about its center of gravity.
Zero
Minimum
Maximum
None of these
Q.32
Pulley in a belt drive acts as
Cylindrical pair
Turning pair
Rolling pair
Sliding pair
Q.33
Which of the following statement is correct?
The periodic time of a particle moving with simple harmonic motion is the time taken by a particle for one complete oscillation.
The periodic time of a particle moving with simple harmonic motion is directly proportional to its angular velocity.
The velocity of a particle moving with simple harmonic motion is zero at the mean position.
The acceleration of the particle moving with simple harmonic motion is maximum at the mean position.
Q.34
The pair is known as a higher pair, when the relative motion between the elements of a pair is
Turning only
Sliding only
Rolling only
Partly turning and partly sliding
Q.35
In order to give a complete secondary balance of a multi-cylinder inline engine,
The algebraic sum of the secondary forces must be equal to zero
The algebraic sum of the couples about any point in the plane of the secondary forces must be equal to zero
Both (A) and (B)
None of these
Q.36
In order to give the primary balance of the reciprocating parts of a multi-cylinder inline engines
The algebraic sum of the primary forces must be equal to zero
The algebraic sum of the couples about any point in the plane of the primary forces must be equal to zero
Both (A) and (B)
None of these
Q.37
Which of the following statement is correct?
The primary unbalanced force is less than the secondary unbalanced force
The primary unbalanced force is maximum twice in one revolution of the crank
The unbalanced force due to reciprocating masses varies in magnitude and direction both
The magnitude of swaying couple in locomotives is inversely proportional to the distance between the two cylinder center lines
Q.38
Which of the following statement is correct?
For constant velocity ratio transmission between two gears, the common normal at the point of contact must always pass through a fixed point on the line joining the centers of rotation of gears.
For involute gears, the pressure angle changes with the change in center distance between gears.
The epicyclic gear trains involve rotation of at least one gear axis about some other gear axis.
All of the above
Q.39
Which of the following statement is correct?
The power absorbed in operating the piston valve is less than D-slide valve
The wear of the piston valve is less than the wear of the D-slide valve
The D-slide valve is also called outside admission valve
All of the above
Q.40
The Ackerman steering gear mechanism is preferred to the Davis steering gear mechanism, because
Whole of the mechanism in the Ackerman steering gear is on the back of the front wheels
The Ackerman steering gear consists of turning pairs
The Ackerman steering gear is most economical
Both (A) and (B)
Q.41
Maximum fluctuation of energy in a flywheel is equal to [where I = Mass moment of inertia of the flywheel, E = Maximum fluctuation of energy, CS = Coefficient of fluctuation of speed, and ω = Mean angular speed = (ω₁ + ω₂)/2]
I.ω.(ω₁ - ω₂)
I.ω².CS
2.E.CS
All of these
Q.42
The gear train usually employed in clocks is a
Simple gear train
Reverted gear train
Sun and planet gear
Differential gear
Q.43
The method of direct and reverse cranks is used in engines for
The control of speed fluctuations
Balancing of forces and couples
Kinematic analysis
Vibration analysis
Q.44
Rectilinear motion of piston is converted into rotary by
Cross head
Slider crank
Connecting rod
Gudgeon pin
Q.45
Which of the following is used to control the speed variations of the engine caused by the fluctuations of the engine turning moment?
D-slide valve
Governor
Flywheel
Meyer's expansion valve
Q.46
The displacement of the D-slide valve is __________ the steam lap by a distance known as lead of the valve.
Greater than
Less than
Equal to
None of these
Q.47
In which of the following type of gear train the first gear and the last gear are co-axial.
Simple gear train
Compound gear train
Reverted gear train
None of the above
Q.48
A point on a connecting link (excluding end points) of a double slider crank mechanism traces a
Straight line path
Hyperbolic path
Parabolic path
Elliptical path
Q.49
The motion between a pair when limited to a definite direction, irrespective of the direction of force applied, is known as
Completely constrained motion
Incompletely constrained motion
Successfully constrained motion
None of these
Q.50
The primary unbalanced force is maximum when the angle of inclination of the crank with the line of stroke is
0° and 90°
0° and 180°
90° and 180°
180° and 360°
