Q.1
The secondary unbalanced force is maximum when the angle of inclination of the crank with the line of stroke is
0° and 90°
180° and 360°
Both (A) and (B)
None of these
Q.2
In elliptical trammels
All four pairs are turning
Three pairs turning and one pair sliding
Two pairs turning and two pairs sliding
One pair turning and three pairs sliding
Q.3
The distance by which the __________ of the D-slide valve overlaps the steam port is called exhaust lap.
Inner edge
Outer edge
Corners
None of these
Q.4
In locomotives, the ratio of the connecting rod length to me crank radius is kept very large in order to
Minimize the effect of primary forces
Minimize the effect of secondary forces
Have perfect balancing
To start the locomotive quickly
Q.5
Transmission of power from the engine to the rear axle of an automobile is by means of
Compound gears
Worm and wheel method
Hooke's joint
Crown gear
Q.6
The ratio of the driving tensions for V-belts is __________ times that of flat belts.
(Where β = Semi-angle of the groove)
sinβ
cosβ
cosecβ
secβ
Q.7
In an open pair, the two elements of a pair
Have a surface contact when in motion
Have a line or point contact when in motion
Are kept in contact by the action of external forces, when in motion
Are not held together mechanically
Q.8
In a single slider crank chain
Each of the four pairs is a turning pair
One is a turning pair and three are sliding pairs
Two are turning pairs and two are sliding pairs
Three are turning pairs and one is a sliding pair
Q.9
An imaginary circle which by pure rolling action, gives the same motion as the actual gear, is called
Addendum circle
Dedendum circle
Pitch circle
Clearance circle
Q.10
The balancing of a rigid rotor can be achieved by appropriately placing balancing masses in
A single plane
Two planes
Three planes
Four planes
Q.11
A point B on a rigid link AB moves with respect to A with angular velocity ω rad/s. The radial component of the acceleration of B with respect to A, is (where vBA = Linear velocity of B with respect to A)
vBA × AB
vBA /AB
v²BA
v²BA /AB
Q.12
Which one of the following can completely balance several masses revolving in different planes on a shaft?
A single mass in different planes
Two masses in any two planes
A single mass in one of the planes of the revolving masses
Two equal masses in any two planes
Q.13
The frictional torque transmitted in a flat collar bearing, considering uniform pressure, is (where r₁ and r₂ = External and internal radii of collar respectively)
(1/2). μ W (r₁ + r₂)
(2/3). μ W (r₁ + r₂)
(1/2). μ W [(r₁³ - r₂³)/(r₁² - r₂²)]
(2/3). μ W [(r₁³ - r₂³)/(r₁² - r₂²)]
Q.14
The power from the engine to the rear axle of an automobile is transmitted by means of
Worm and worm wheel
Spur gears
Bevel gears
Hooke's joint
Q.15
Which of the following governor is used to drive a gramophone?
Watt governor
Porter governor
Pickering governor
Hartnell governor
Q.16
The frictional torque transmitted in a flat collar bearing, considering uniform wear, is (where r₁ and r₂ = External and internal radii of collar respectively)
(1/2) μ W (r₁ + r₂)
(2/3) μ W (r₁ + r₂)
(1/2) μ W [(r₁³ - r₂³)/(r₁² - r₂²)]
(2/3) μ W [(r₁³ - r₂³)/(r₁² - r₂²)]
Q.17
The following is the inversion of slider crank chain mechanism
Whitworth quick return mechanism
Hand pump
Oscillating cylinder engine
All of the above
Q.18
The partial balancing means
Balancing partially revolving masses
Balancing partially reciprocating masses
Best balancing of engines
All of these
Q.19
Coriolis component is encountered in
Quick return mechanism of shaper
Four bar chain mechanism
Slider crank mechanism
Both (A) and (C) above
Q.20
When a ship travels in a sea, which of the effect is more dangerous
Steering
Pitching
Rolling
All of the above
Q.21
The Klein's diagram is useful to find
Displacement of various parts
Velocity of various parts
Acceleration of various parts
Angular acceleration of various parts
Q.22
With single Hooke's joint it is possible to connect two shafts, the axes of which have an angular misalignment up to
10°
20°
30°
40°
Q.23
For two governors A and B, the lift of sleeve of governor A is more than that of governor B, for a given fractional change in speed. It indicates that
Governor A is more sensitive than governor B
Governor B is more sensitive than governor A
Both governors A and B are equally sensitive
None of the above
Q.24

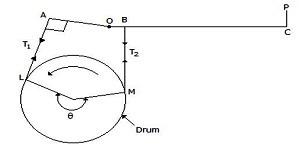

In a differential band brake as shown in the below figure, the drum rotates anticlockwise and the greater tension T₁ acts at A and smaller tension T₂ at B. Length OA is greater than length OB. In order to apply the brake, the force P at C should
Be zero
Act in upward direction
Act in downward direction
None of the above
Q.25
A higher pair has__________.
Point contact
Surface contact
No contact
None of the above
Q.26
Which of the following is a higher pair?
Belt and pulley
Turning pair
Screw pair
Sliding pair
Q.27
Coriolis component acts
Perpendicular to sliding surfaces
Along sliding surfaces
Somewhere in between above two
None of the above
Q.28
In a cone pulley, if the sum of radii of the pulleys on the driving and driven shafts is constant, then
Open belt drive is recommended
Crossed belt drive is recommended
Both open belt drive and crossed belt drive is recommended
The drive is recommended depending upon the torque transmitted
Q.29
TJIE horse power transmitted by a belt is dependent upon
Tension on tight side of belt
Tension on slack side of belt
Radius of pulley
All of the above
Q.30
Which of the following disciplines provides study of inertia forces arising from the combined effect of the mass and the motion of the parts?
Theory of machines
Applied mechanics
Mechanisms
Kinetics
Q.31
In the below figure, PC is the connecting rod and OC is the crank making an angle θ with the line of stroke PO and rotates with uniform angular velocity at ω rad/s. The Klien's acceleration diagram for determining the acceleration of the piston P is shown by quadrilateral CQNO. The acceleration of the piston P with respect to the crank-pin C is given by
ω² × NO
ω² × CO
ω² × CN
ω² × QN
Q.32
If some links are connected such that motion between them can take place in more than one direction, it is called
Incompletely constrained motion
Partially constrained motion
Completely constrained motion
Successfully constrained motion
Q.33
The frequency of oscillation of a torsional pendulum is
2πk/r. √(g/l)
r/2πk. √(l/g)
2πr/k. √(g/l)
r/2πk. √(g/l)
Q.34
If the number of links in a mechanism is equal to l, then the numbers of possible inversions are equal to
l - 2
l - 1
l
l + 1
Q.35
The unbalanced force due to reciprocating masses
Varies in magnitude but constant in direction
Varies in direction but constant in magnitude
Varies in magnitude and direction both
Constant in magnitude and direction both
Q.36
Angle of ascent of cam is defined as the angle
During which the follower returns to its initial position
Of rotation of the cam for a definite displacement of the follower
Through which the cam rotates during the period in which the follower remains in highest position
Moved by the cam from the instant the follower begins to rise, till it reaches its highest position
Q.37
Angle of descent of cam is defined as the angle
During which the follower returns to its initial position
Of rotation of the cam for a definite displacement of the follower
Through which the cam rotates during the period in which the follower remains in the highest position
Moved by the cam from the instant the follower begins to rise, till it reaches its highest position
Q.38
The relation between number of links (l) and number of joints (j) in a kinematic chain is
l = (1/2).(j + 2)
l = (2/3).(j + 2)
l = (3/4).(j + 3)
l = j + 4
Q.39
Angle of dwell of cam is defined as the angle
During which the follower returns to its initial position
Of rotation of the cam for definite displacement of the follower
Through which the cam rotates during the period in which the follower remains in the highest position
Moved by the cam from the instant the follower begins to rise, till it reaches its highest position
Q.40
Cam angle is defined as the angle
During which the follower returns to its initial position
Of rotation of the cam for a definite displacement of the follower
Through which, the cam rotates during the period in which the follower remains in the highest position
Moved by the cam from the instant the follower begins to rise, till it reaches its highest position
Q.41
The inversion of a mechanism is
Changing of a higher pair to a lower pair
Turning its upside down
Obtained by fixing different links in a kinematic chain
Obtained by reversing the input and output motion
Q.42
The rotor of a ship rotates in clockwise direction when viewed from stern and the ship takes a left turn. The effect of gyroscopic couple acting on it will be
To raise the bow and stern
To lower the bow and stern
To raise the bow and lower the stern
To raise the stern and lower the bow
Q.43
When the pitching of a ship is upward, the effect of gyroscopic couple acting on it will be
To move the ship towards starboard
To move the ship towards port side
To raise the bow and lower the stern
To raise the stern and lower the bow
Q.44
Which of the following disciplines provides study of the relative motion between the parts of a machine and the forces acting on the parts?
Theory of machines
Applied mechanics
Mechanisms
Kinetics
Q.45
The component of the acceleration, parallel to the velocity of the particle, at the given instant is called
Radial component
Tangential component
Coriolis component
None of these
Q.46
The component of the acceleration, perpendicular to the velocity of the particle, at the given instant is called
Radial component
Tangential component
Coriolis component
None of these
Q.47
A combination of kinematic pairs, joined in such a way that the relative motion between the links is completely constrained, is called a
Structure
Mechanism
Kinematic chain
Inversion
Q.48
In a steam engine, the link constitutes a
Piston, piston rod and cross-head
Connecting rod with big and small end brasses, caps and bolts
Crank pin, crankshaft and flywheel
All of the above
Q.49
The two elements of a pair are said to form a _________ when they permit relative motion between them.
Open pair
Kinematic pair
Sliding pair
None of these
Q.50
The primary unbalanced force is maximum _________ in one revolution of the crank.
Twice
Four times
Eight times
Sixteen times
